LED Linear High-Bay; 65W/75W/85W Wattage Selectable; 3K/4K/5K CCT

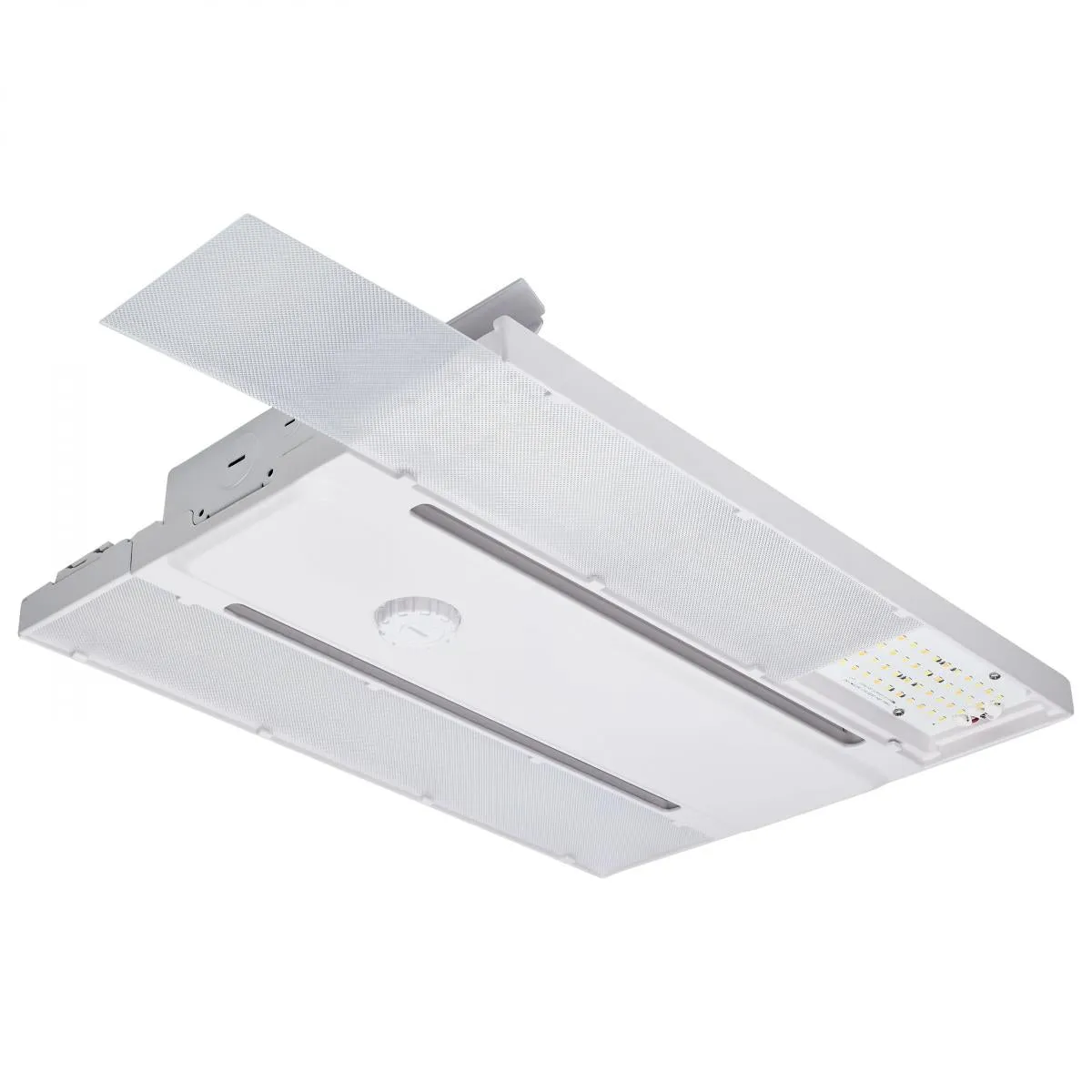

Introducing SATCO|NUVO's versatile High Bay Fixtures, designed for ultimate lighting adaptability. Our field selectable fixtures comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The included 90 degrees x 90 degrees optical lens ensures even light distribution for most general applications, while optional lenses are available as accessories for specialized lighting needs. In addition to lens versatility, these fixtures offer three wattage and color temperature options, a flicker-free driver for seamless illumination, 6kV surge protection for added durability, and 0-10V dimming capability for precise control. For enhanced energy efficiency, an integrated sensor port is readily accessible, allowing seamless installation of optional PIR or microwave motion sensors. These sensors can be conveniently configured using an optional remote control. Designed for surface, suspension, and pendant mounting capabilities, these high bays are the ultimate lighting solution that adapts to all your needs.
- CCT and Wattage Selectable
- Flicker Free Driver

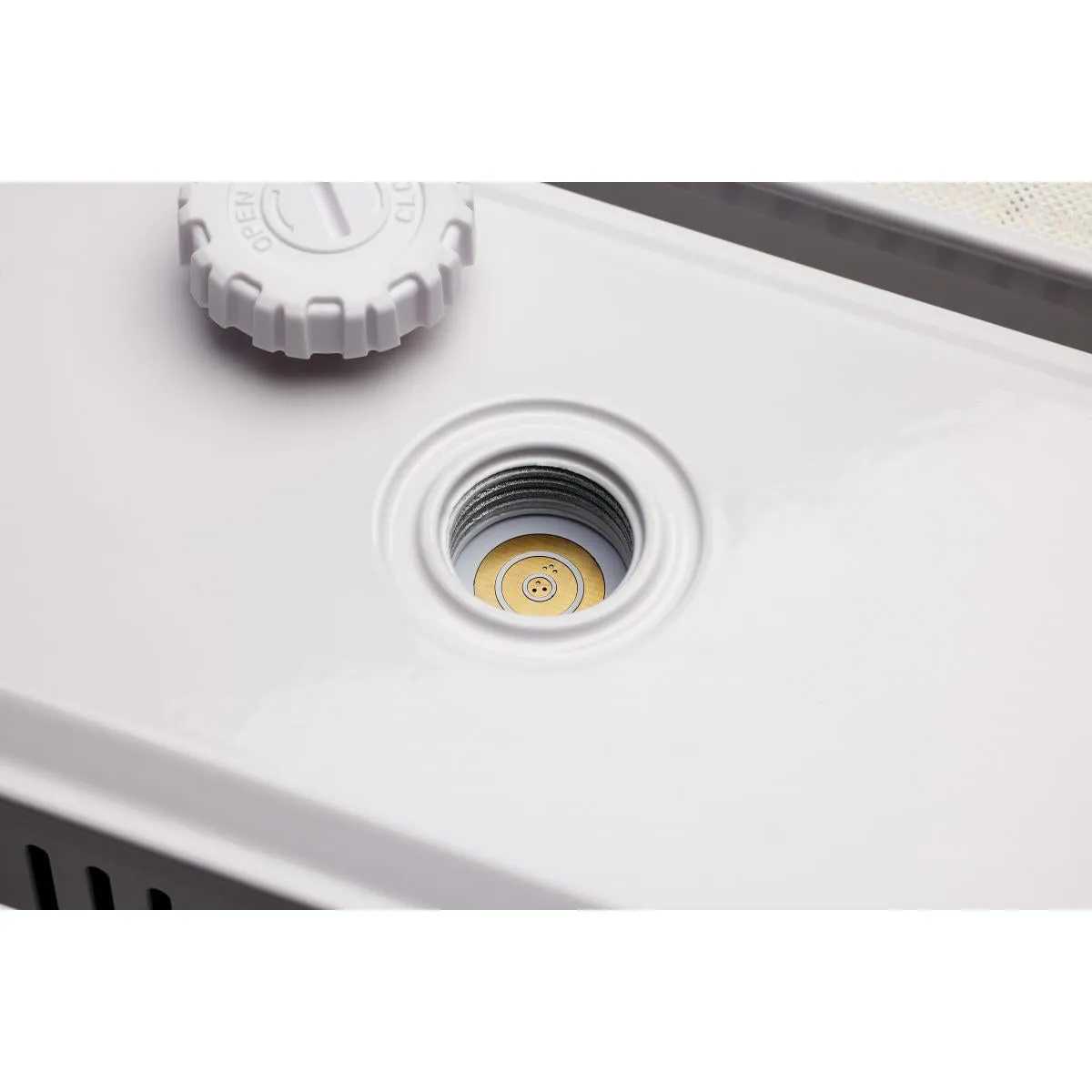

- Integrated Sensor Port
- 41-inch Suspension Kit Included
- 6kV Surge Protection
- 5 Year Warranty
SpecificationsDimensionsComplianceAdditional InformationPackaging
| Fixture Type | Linear Hi-Bay |
| Finish | White |
| Wattage | 65W/75W/85W |
| Lumen Output | 9474L-12739L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| IP Rating | IP20 |
| Technology | LED |
| Wattage | 65W/75W/85W |
| Lumen Output | 9474L-12739L |
| CCT (Kelvin) | 3000K/4000K/5000K |
| Color Temperature | Soft White to Natural Light |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 90x90 |
| Rated Hours | 50000 |
| Operating Temperature | -40C (-40F) to 55C ( 131F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 6KV |
| Weight (lb.) | 5.07 |
| IP Rating | IP20 |
| Material | Die-cast Aluminum |
| Height (in.) | 1.77 |
| Length (in.) | 14.17 |
| Safety Listing | cULus - Certified |
| Location Rating | Damp |
| DLC Approved | Yes |
| DLC ID | S-56LRO2 |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Includes | 41 Inch Suspension Kit |
| Warranty | |
| Each UPC | 045923657276 |
| Each Quantity | 1 |
| Each Length (in.) | 14.96 |
| Each Width (in.) | 11.81 |
| Each Height (in.) | 2.95 |
